Thermal. Mapping. Inspection. Public Safety.

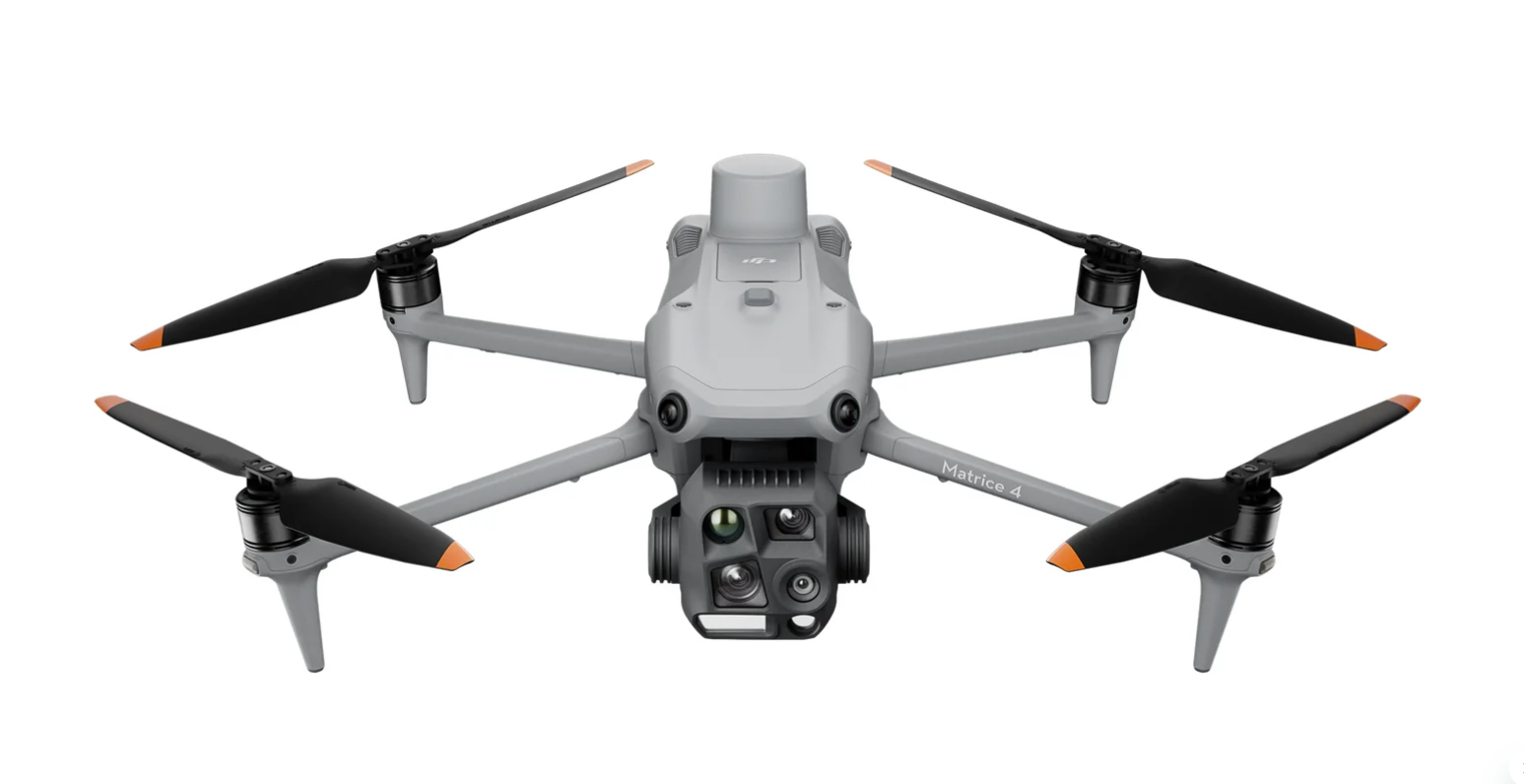

DJI Matrice 4T

• Wide-Angle Camera 1/1.3″ CMOS, 48MP Effective Pixels, f/1.7, Format Equivalent: 24 mm

• Medium Tele Camera 1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm

• Tele Camera 1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm

• Laser Range Finder Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 + 0.0015 × D)

• Infrared Thermal Camera Resolution 640 × 512, f/1.0, Equivalent Focal Length: 53 mm, Uncooled VOx Microbolometer, Supports High-Res Mode

• NIR Auxiliary Light FOV: 6°, Illumination Distance: 100 m

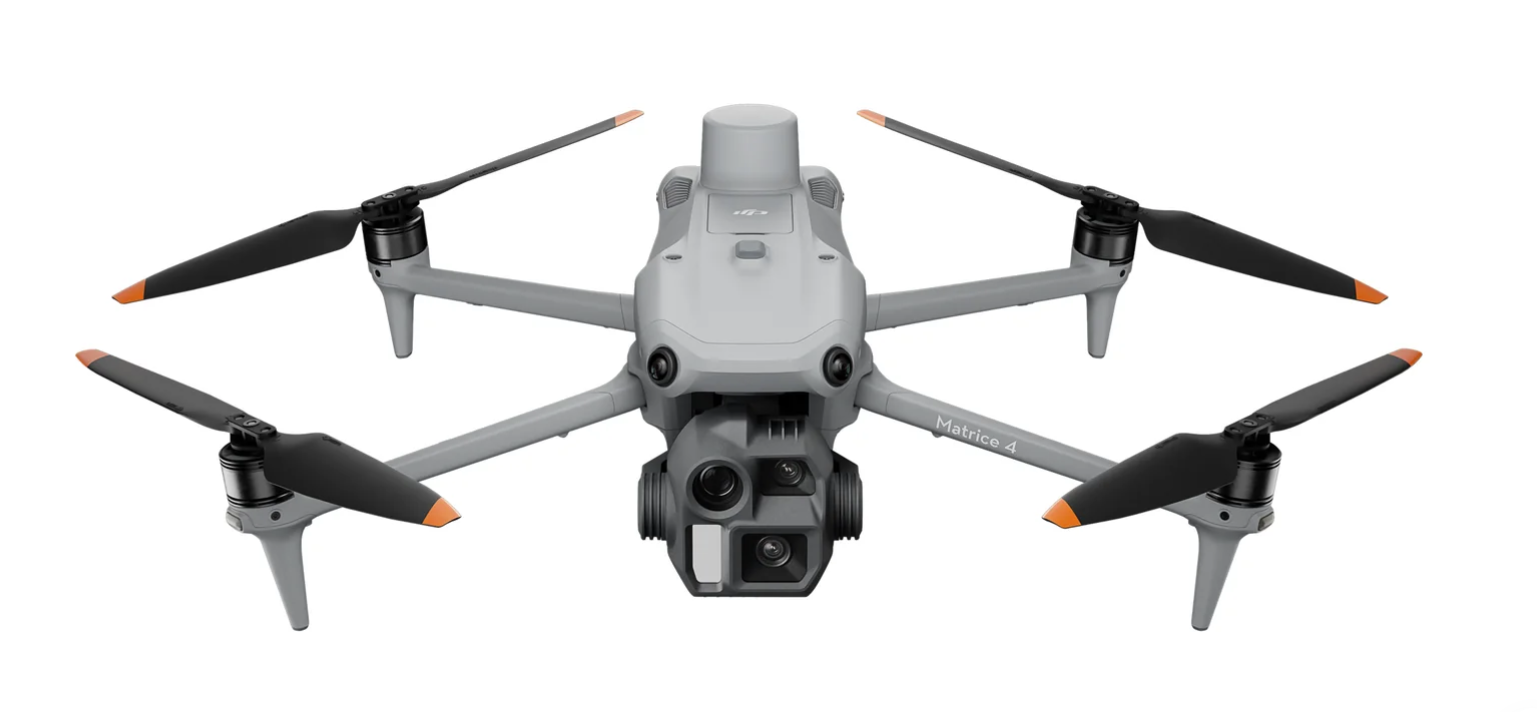

DJI Matrice 4E

• Wide-Angle Camera 4/3 CMOS, 20MP Effective Pixels , f/2.8-f/11, Format Equivalent: 24 mm, Mechanical Shutter

• Medium Tele Camera 1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm

• Tele Camera 1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm

• Laser Range Finder Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 + 0.0015 × D)

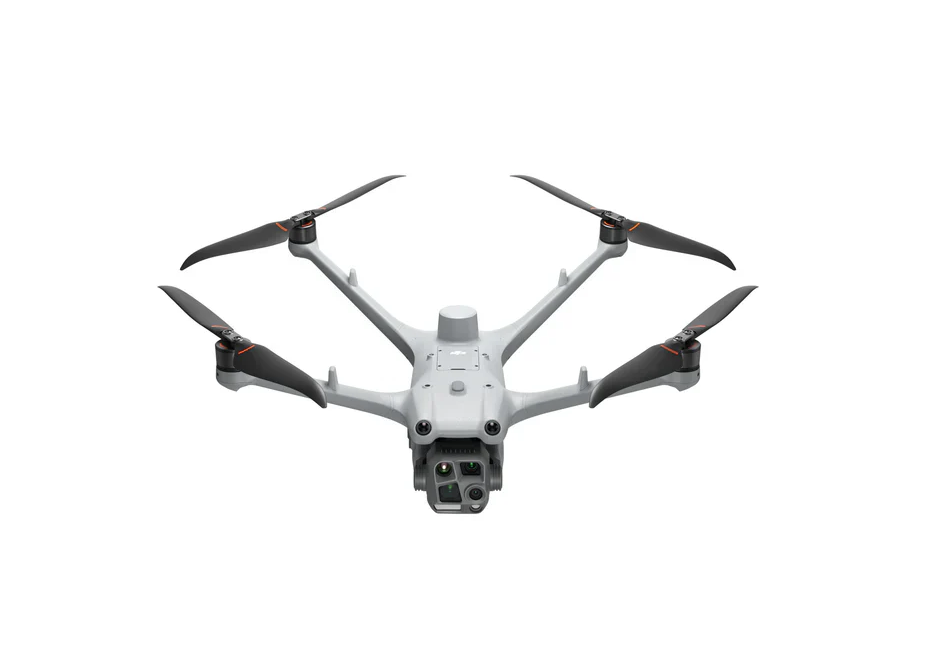

DJI Matrice 4TD Drone

Dock 3 Compatible Drone System

Thermal Camera: 640×512 resolution, f/1.0, ~53 mm equivalent Infrared super-resolution 1280×1024
Wide-Angle Camera: 1/1.3" CMOS, 48 MP f/1.7, ~24 mm format equivalent
Medium Tele Camera: 1/1.3" CMOS, 48 MP f/2.8, ~70 mm format equivalent
High Performance Drones: The all-new water and dust-resistant DJI Matrice 4D and 4TD are specifically designed for DJI Dock 3
